EU DUTY FREE Ebike Conversion kits 36V 48V 1000W Ebike Motor Wheel Size 20"-29" LCD Controller PAS Throttle Brake Lever • CTBikes

EU DUTY FREE Ebike Conversion kits 36V 48V 1000W Ebike Motor Wheel Size 20″-29″ LCD Controller PAS Throttle Brake Lever

£488.60 – £558.60

SKU: 1947983314 Category: Footwear

Description

Motor Type: Brushless Non-gear Hub Motor
Wattage: > 400w
Design: Brushless
Voltage: 48V
Brand Name: RisunMotor
Origin: Mainland China
Certification: CE
Wheel Size: 20", 24", 26", 700C, 28", 29er
Wheel Position: Front or Rear Wheel
Throttle: 36V 48V Twist Throttle with Electric Key
LCD Display: Speed, Trip Display
Fork Dropout: Front: 100mm; Rear: 135mm
Speed Gear: 7-Speed
is_customized: Yes

RisunMotor Electric Bicycle Conversion kits 36V/48V 1000W 7-Speed Gear Rear Wheel For Ebike 20"-29er/700C With LCD3 Display

Before you buy, please kindly confirm your battery max current is 26A.

Very Important Attention:

1. Wheel Size Options: 20", 24", 26", 700C, 28", 29er (spoke wheels), 14", 16" 18" (casted wheel, not shown as pictures, for more pictures feel free to contact us)

2. Wheel Options: Front Wheel or Rear Wheel (7-speed)

3. If your bike is always overloaded or climbing hills/slope continuously, you must set LCD's C5 value to 8 to avoid overheat damage to the controller.

4. Battery is NOT include in this kit.

5.28"(ISO BSD:635MM) 700C/29"(ISO BSD:622MM)

Parts Including in this kit:

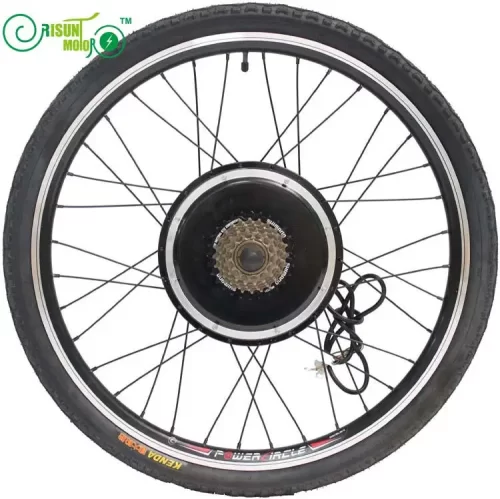

Motorized Wheel

Controller+Controller Bag

2 Brake Levers

Twist Speed Throttle with Electric Key Lock 2ea. Handlebar Grips

5-level PAS Control LCD Display

Pedalec Sensor

Battery Connecting Cable

Motor Performance:

1) High Motor Efficiency: >85%

2) Speed: 0-50km (different wheel size, road&weather condition and rider's weight will have different speed)

3) Hub Width (dropout): 100mm front or 135mm rear hub motor

4) Rear Wheel with 7-speed

5) Strong Double-wall rim and tire special for e-bike

1000W Controller Performance:

1) 12 MOSFET

2) Rated Voltage: 36V or 48V (Universal)

3) Min. Voltage: DC30V/40±0.5V

4) Max. Current: 26±1A

5) Speed set: 1-4.2V

6) Brake Input: Low-Level

LCD Performance:

1) 24V, 36V or 48V universal

2) Function: 5-speed level PAS, turn on/off PAS, speed display, speed limit, Cruise, 5-speed level throttle, max current setting, optional Regenerative braking function

3) Size: 96x65x20mm

Controller Bag:

1) Size: About 31*3.5*5.5cm (Existence measurement error,It's fit all our KT controllers <1000w)

Pedal AssistantSensor:

1) Cable Length:800mm

2) Diameter Of Ring: 6.5cm

3) Magnets : 8

Warranty

Item has one year warrenty for motor and three months guarantee for the rest parts. Customer's wrong operation is not include in this warranty.

Customs dutyCustoms duty

Import duty/tax is not include in item price.

Delivery TimeDelivery Time

Select the destination from the list of countries. We will try our best to ship parcel as soon as possible. If have a problem of delivery, please feel free to contact us.

Exchanges & Return Policy

Returning an item couldn't be easier. If you need to send item back, you have 14 days from the date you received your order to exchange or return. Sale item is not returnable.

Please make sure your item is returned new and unused unless the item is faulty. Returns that do not meet our policy will not be accepted and will be sent back to the customer. Please contact us befeore returning item.

Feedback

We appreciate your business, If you are satisfy with our service, please leave us a positive feedback. Please email us before leaving any negative feedback or open any dispute. We understand the concerns and frustrations you might have, and will do our best to resolve any issues.

Company Information

Our company has dedicated to ebike industry over 10 years. It is foreign investment, our office is in Shanghai and factory is located in Jiangsu Province China.

As a leadership manufacturer in industry, we provide electric bicycles, batteries, ebike motors, ebike accessories, BLDC motors, electric wheelchairs, electric golf strikes and scooters. We insist to provide high quality products, latest technology and great performance.

Installation Guidance:

1) Uncrew the existing front or rear wheel screws, remove wheel;

2) Install the motorzied wheel and fasten screws;

3) Attach LCD, Brake lever and throttle;

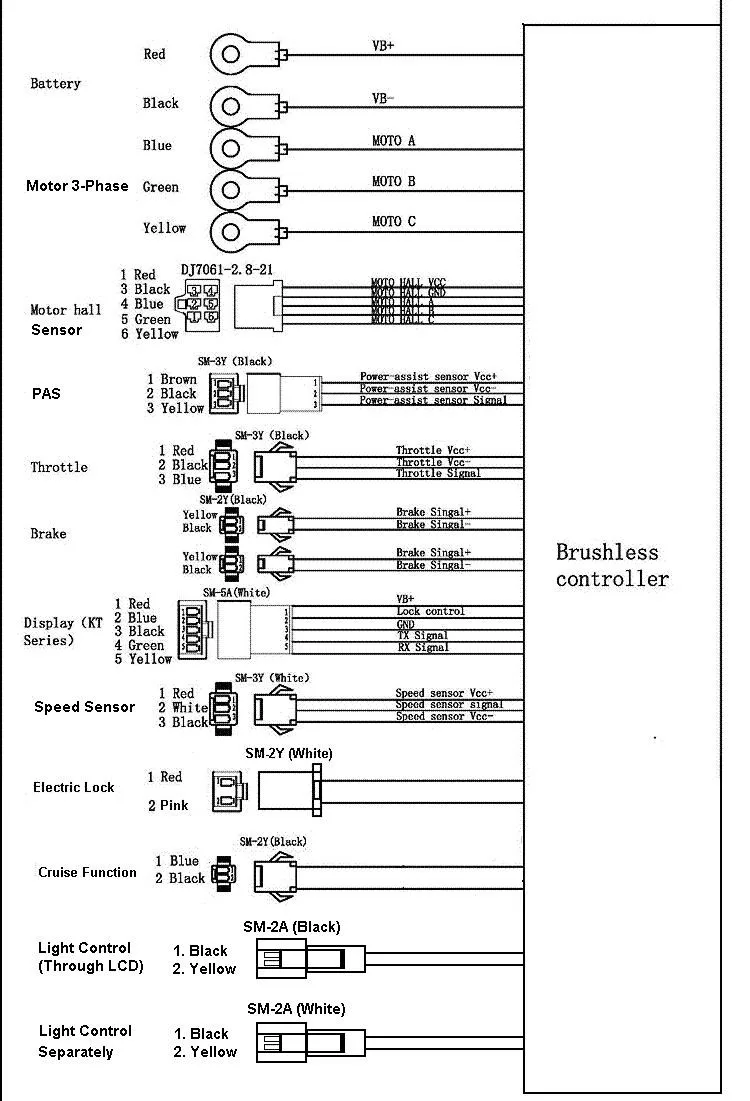

4) Put Controller at suitable position and connect all wires.

5) Turn on battery, throttle key and LCD, set correct value from LCD

Correct wheel size setting: according to your wheel size

Correct max speed setting: set it at max value 72

Correct P1-P5 setting: P1=46,P2=0,P3=0,P4=0,P5=12

FAQ:

1) Does your front or rear wheel support disc brake?

Yes, our motor wheel support standard 6-hole type disc brake

2) Why can't turn on power

Please kindly check whether battery poles connect with controller is correct;

Please kindly check whether all connection correct and tight

Please kindly check whether you connect electric lock plug and turn on throttle key

Please kindly check whether you turn on LCD Display

3) Why after I turn on power and turn throttle, motor doesn't work

Please kindly check whether all power already turned on

Please kindly check whether throttle connection is correct (Throttle is red/black/blue wires)

Please kindly check PAS speed level on LCD, whether it is not 0 (0 will turn off PAS and throttle)

4) Why my speed display is not correct

Pleasekindly check whether you have correct setting:

Correct wheel size setting: according to your wheel size

Correct max speed setting: set it at max value 72

Correct P1-P5 setting: P1=46,P2=0,P3=0,P4=0,P5=12

5) How can I disable cruise function

Please turn on power

Please remove cruise plug (small black plug of Black/Blue wires)

Turn off power

Turn on power again

6) Why after turn on, LCD show "03 Info"

This is because of hall sensor abnormal, and most time is because hall sensor connection doesn't contact well, please kindly check the 5-wire hall sensor connector and also inside whether any pin bent doesn't contact well.

7) What is the difference between front wheel and rear wheel?

Front wheel is easier to install and can keep your original speed gear of the rear wheel, it is suitable for flat road riding. Rear wheel is better for hilly road and hill climbing, and it has 7-speed gear.

8) What is the difference between standard braking and regenerative braking kit?

Regenerative braking kit can save power, the battery can drive more distance, but the top speed will be also lower than standard braking kit, so if you prefer high speed, we recommend you to buy standard braking kit.

9) Is there any maintenance required?

No, never with brushless gearless motors because there is only one moving part in the entire system, the wheel!

10) Is Pedelec Sensor included?

Yes, and you can install it or not as you will. You can also turn off it with PAS level 0

11) How to Choose Battery?

We recommend big power motor to choose big capacity battery, for example: For 200W,250W and 350W motor kits, we recommend to use 10AH or 12AH Batteries, for 500W and 750W motor kits, we recommend to use 15AH,20AH Batteries. For 1000W motor kits, we recommend to use 20AH or above Batteries.

12) How to calculate torque?

Torque (in N*m) = 9.55 * Power (in watts) / Speed (in rpm)

1N*m = 141.61 oz*in = 8.85 lb*in = 10,200.0 g*cm, 1.0 hp = 745.7 watts

1.0 in = 2.54 cm, 1.0 kg = 2.205 lb = 35.27 oz, 1.0 mile = 1.61 Km, Tc=(Tf-32)*5/9.
